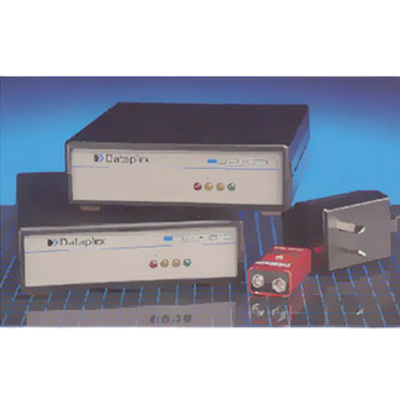

AccessPro34 V34 2W Desktop modem

AccessPro34 V34 2W Desktop modem

Description

The Accesspro34 is a full featured modem designed to meet the critical demands of commercial and professional applications. The modem provides high throughput on dial or leased lines – up to 115,200bps, together with V.42bis/ MNP 5 data compression, V.42 error correction, system security and full fax capability.

The AccessPro34E has been developed to provide a simple cost effective solution to your Remote LAN Access needs. The AccessPro34E has been designed to meet the critical demands of commercial and professional applications. The AccessPro34E provides reliable high throughput LAN access capability with the ease of use of a conventional modem.
DES Encryption Option
With DES, connections may be secured by using Fixed Key or Random Session Keys. This ensures that any data passed between the modems cannot be interpreted by other individuals. An optional RSA session key system is available if higher levels of public key security are required.
Client to LAN Ethernet Network Option
The AccessPro34E connects directly to your Ethernet UTP LAN to instantly provide Remote LAN access capability with the minimum of fuss. Configuration is achieved through the use of the Serial DTE port on the standalone desktop model or via the AccessPoint-Manager with the High Density Rackmount version.
The AccessPro34E supports the common PPP (Point to Point Protocol) for connections to industry standard PPP Client Software packages, for example, Windows 95 and Trumpet Winsock.
The TCP/IP and IPX LAN protocols are also supported, which allows you to access your Novell Netware File Server and Unix LAN-based applications.
LAN to LAN Ethernet Network Option
By connecting an AccessPro34E to your Remote LAN (as well as your Central Site LAN) you can provide a facility for automatic LAN to LAN dial-up connections. The connections can be established and terminated automatically without any user intervention.
As well as connecting to another AccesPro34E, the AccessPro34E can connect to your existing PPP LAN Access Servers.
Top Performance over Poor Lines
Advanced Digital Signal Processing, on-line rate renegotiation and adaptive equalisation ensures that the Accesspro34 delivers accurate data over the widest range of phone lines.
High Throughput
Selective block retransmission, V.42bis and MNP 5 ensure the highest possible throughput and economy for all users on all lines. The Accesspro34 is ideal for high volume traffic on expensive long distance lines or any application where fast, low cost error free data transfer is required. Incompressible files can be sent error free at 33,600bps – even with DES encryption enabled.
Protect Your System
Password verification and same line callback help protect your system from unauthorised access. Once configured, the Accesspro34 cannot be maliciously or inadvertently reconfigured by any interface or line commands. Auto-logon allows users to bypass the normal password entry sequence – the modems transparently exchange a password before going on-line. Top security is achieved by enabling DES encryption.
LAN Access AccessPro34E Security Options
To ensure the security of your network is not violated, the AccessPro34E supports user authentication based on the tried and proven AccessPoint-Security system.
User ID/Password, Challenge/Response and PAP (PPP Password Authentication Protocol) are supported.
Extensive Diagnostics
Diagnostics include LEDs for on line activity display, a speaker for call progress monitoring, local and remote loopbacks controlled from the front panel switch, AT commands or V.54 signals, plus inbuilt test pattern generation and checking.
Network Management
The stand alone and the rack mount versions are available with the optional Dataplex Network Management System (AccessPoint-Manager) for centralised control and reconfiguration.
Performance and Reliability
Manufactured under an IS0-9001/AS-3901 quality control system, the Accesspro34 offers an advanced design with minimum parts count for maximum reliability. It has an internal power supply and is housed in a durable plastic case.
